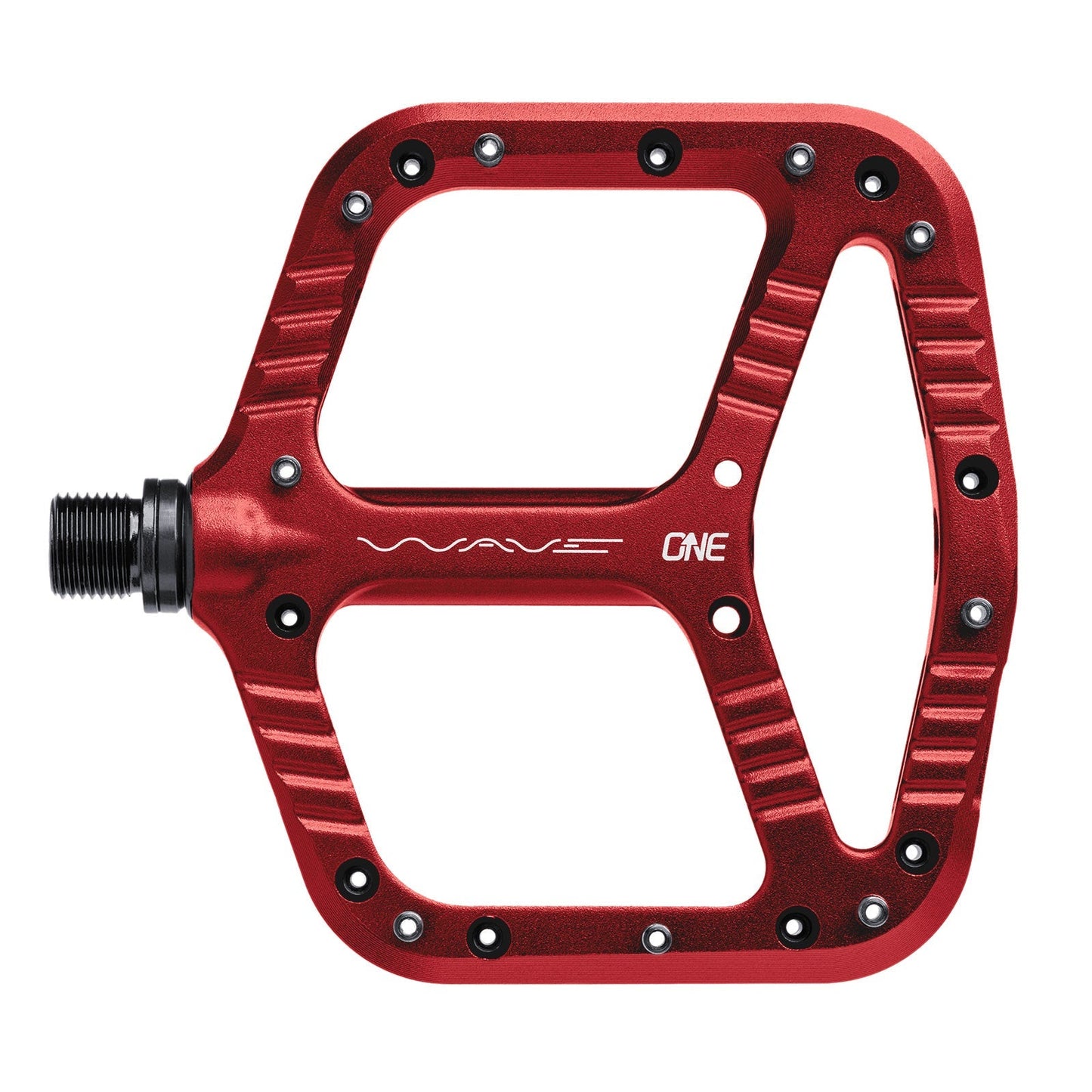

Wave Pedals

€208,24 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

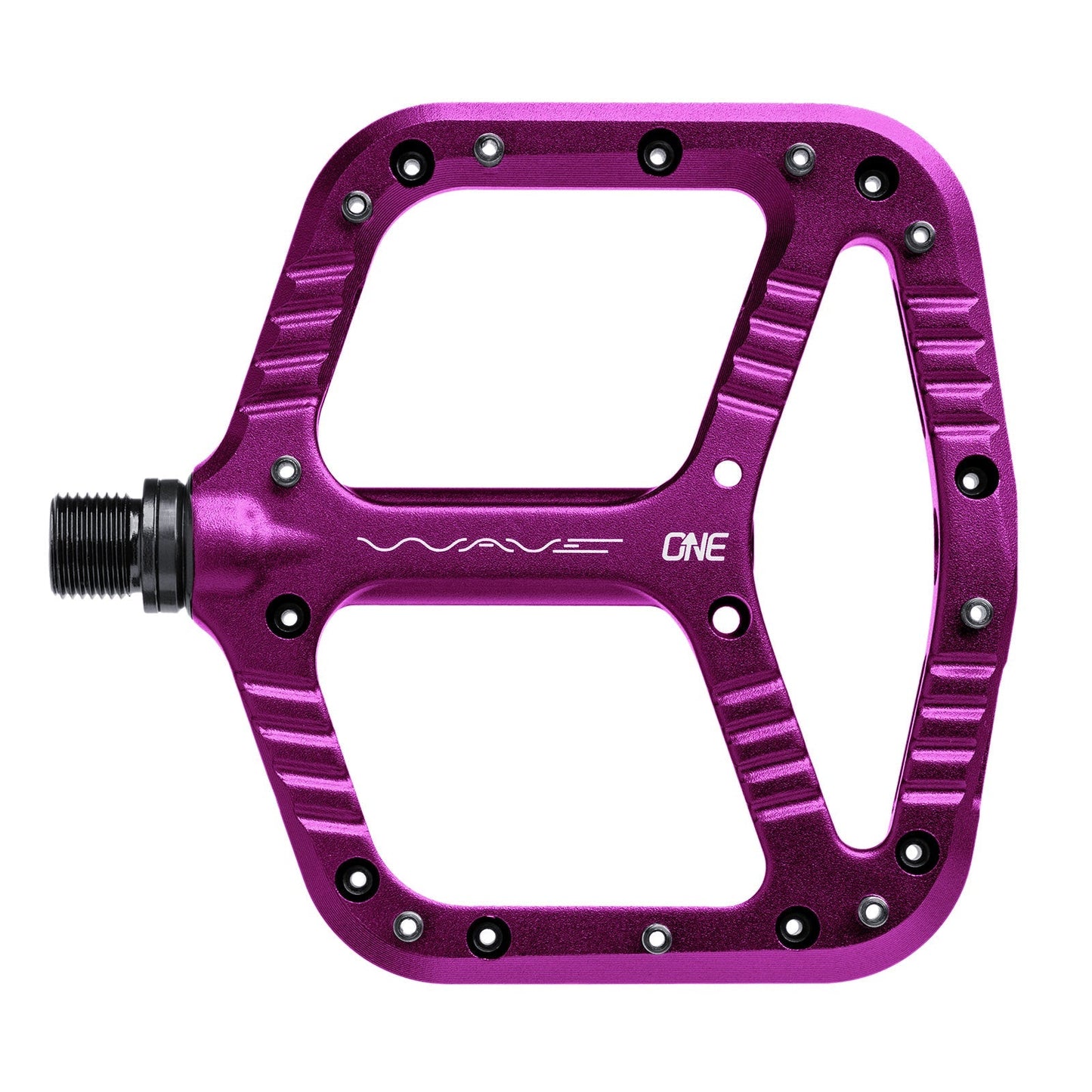

Get ultimate grip and bike control with our innovative Wave profile.

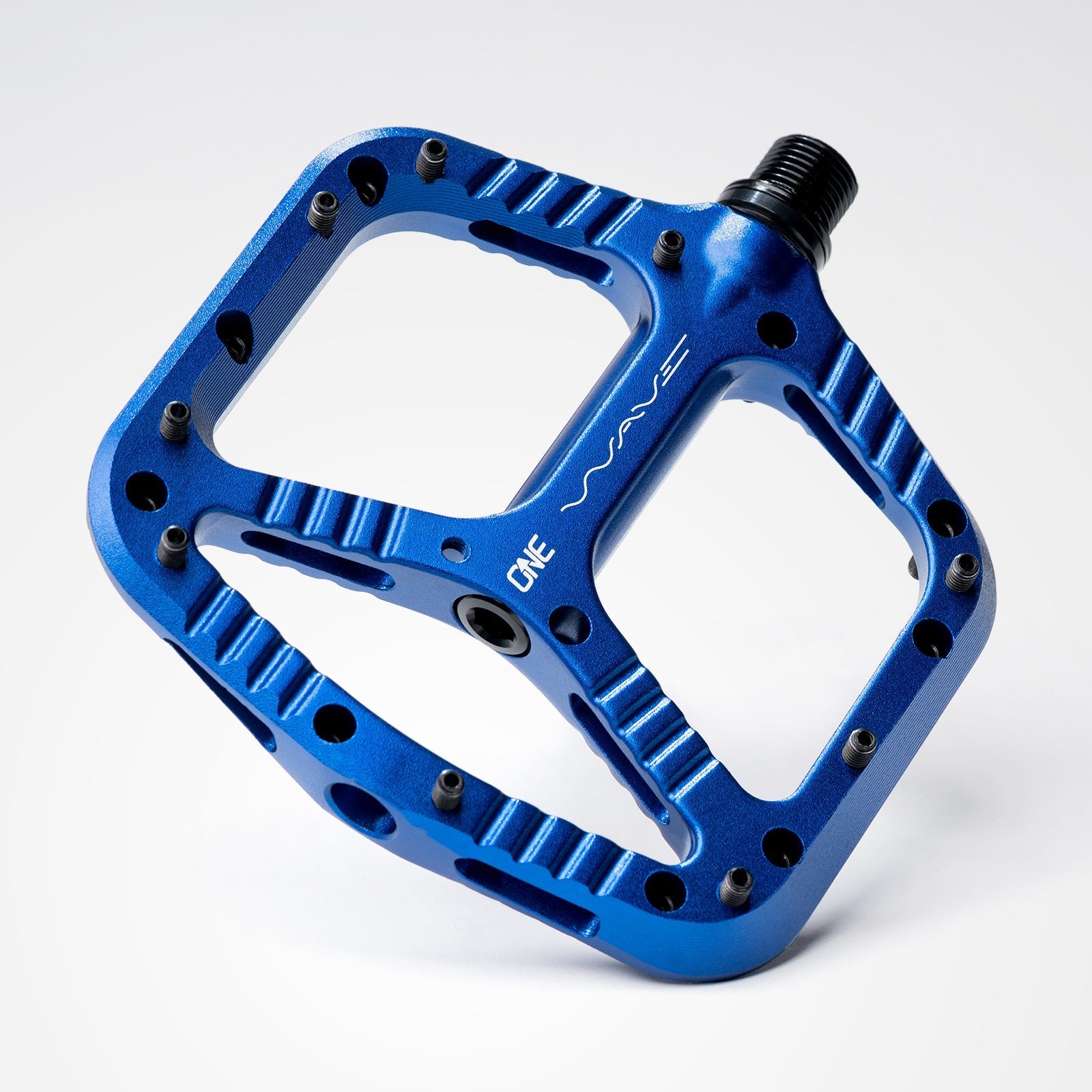

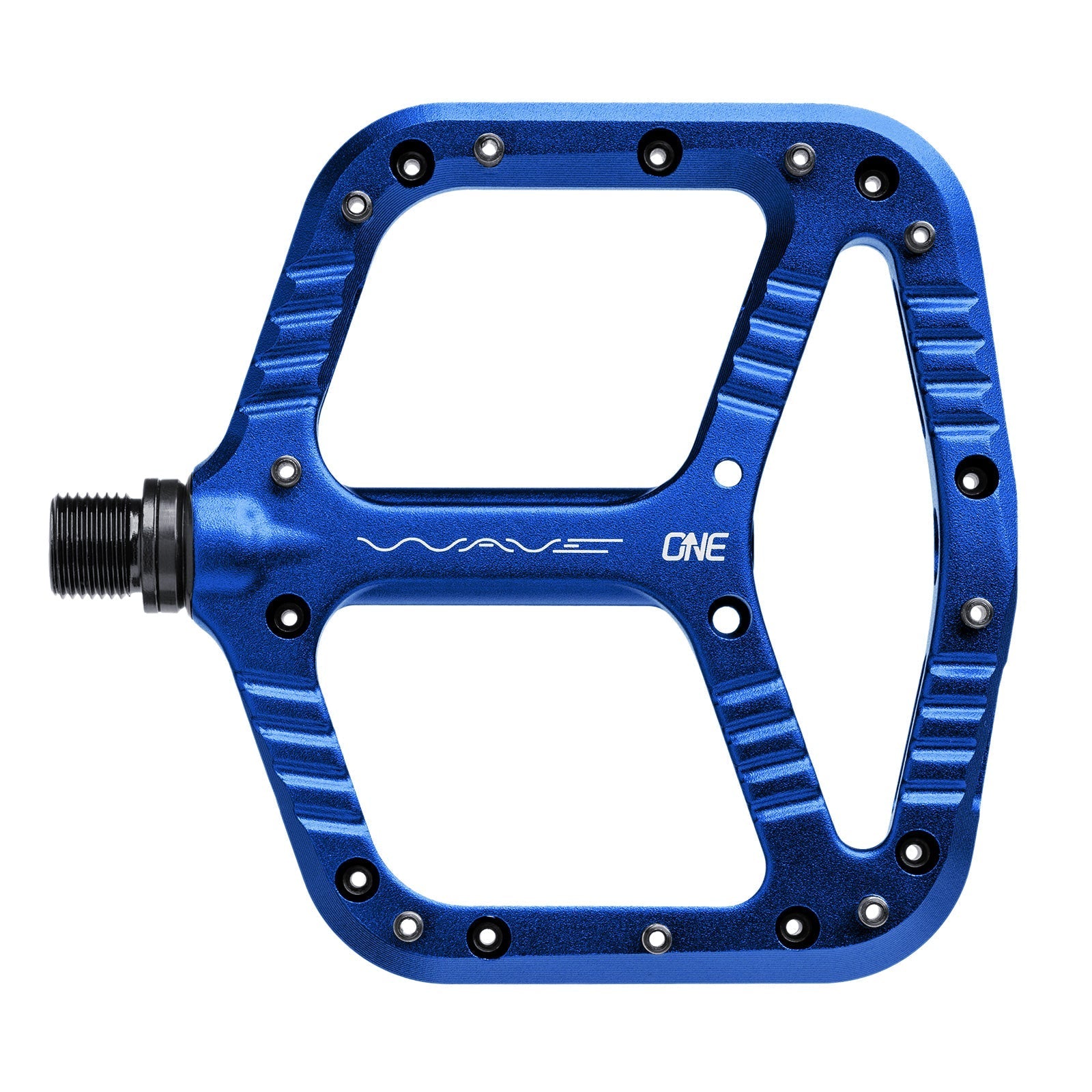

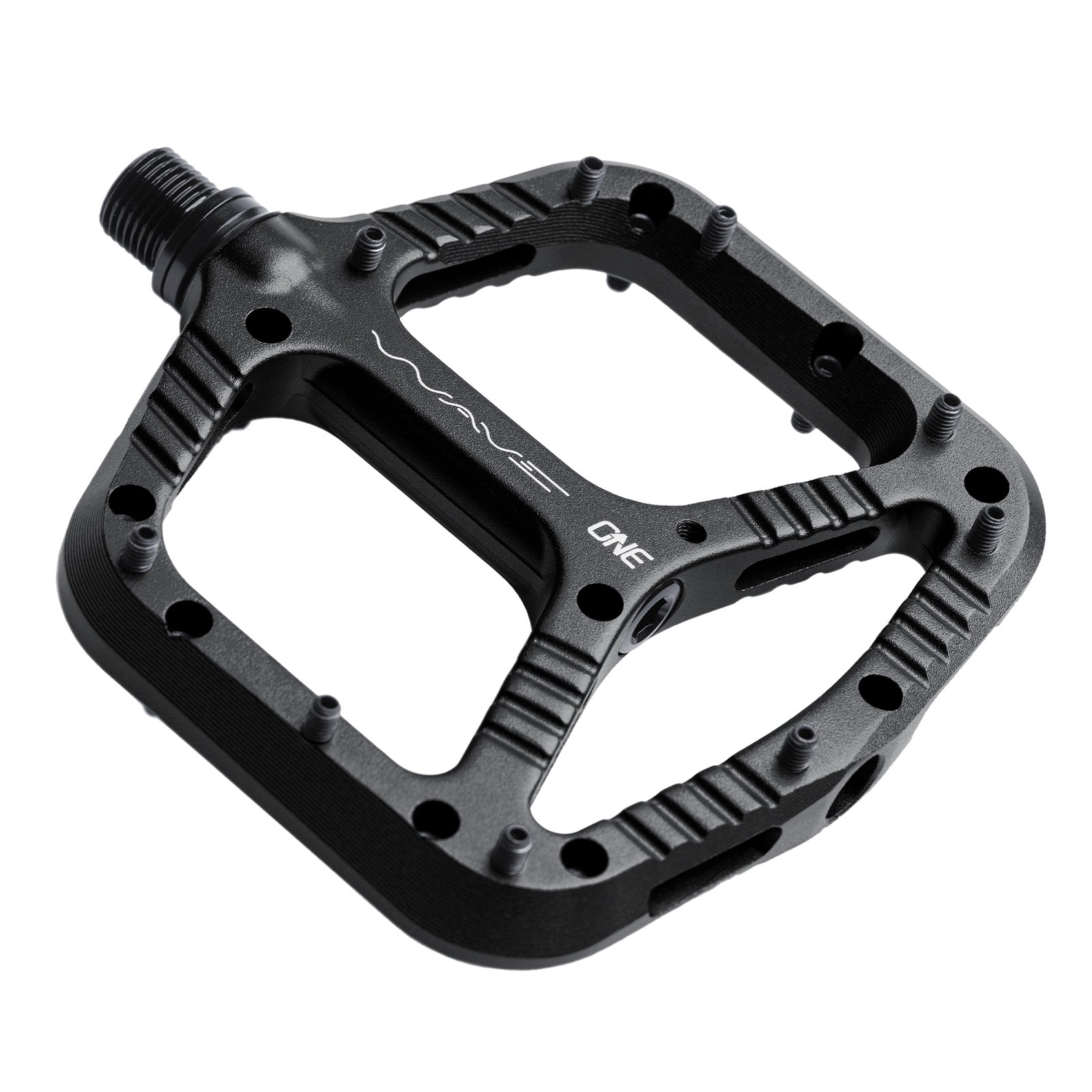

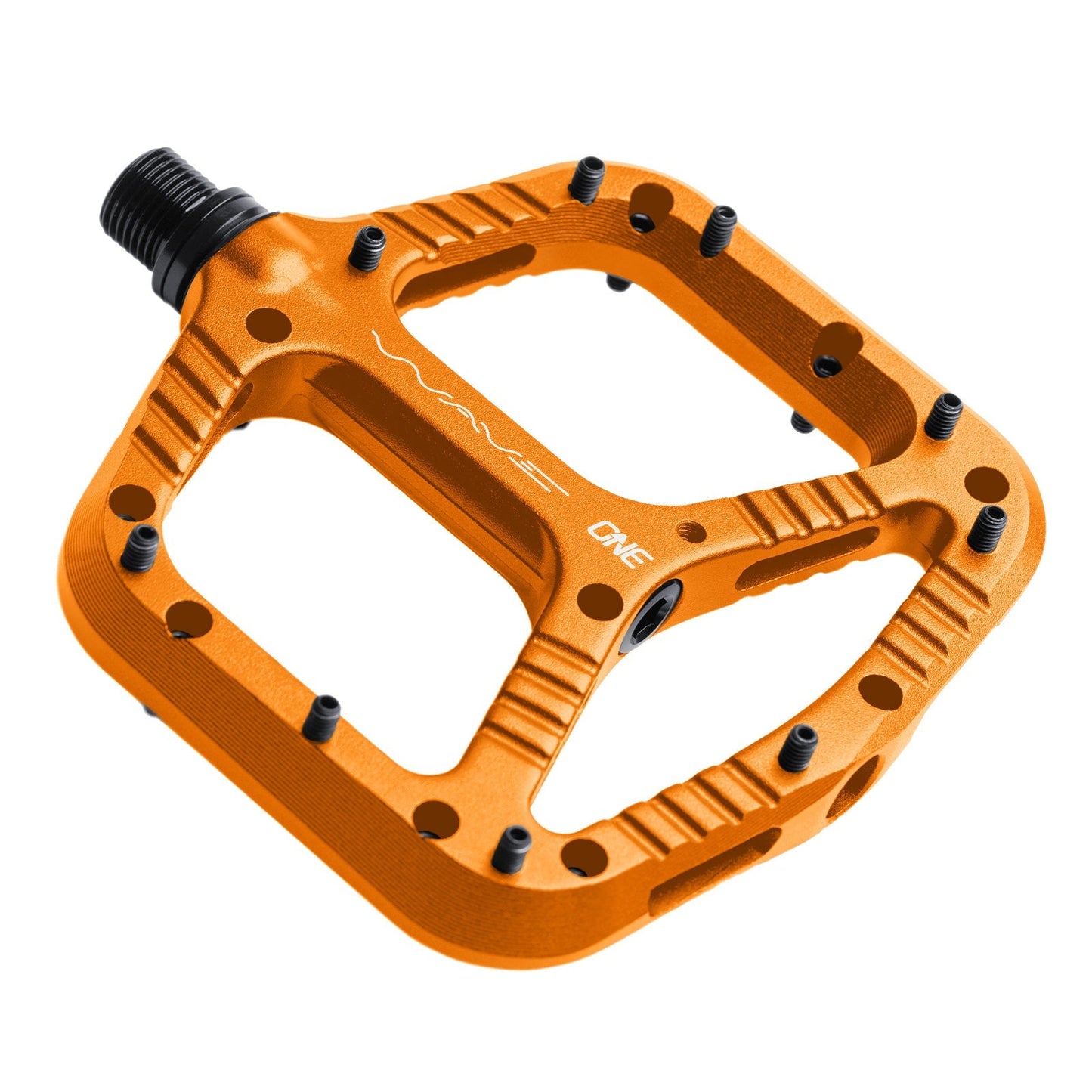

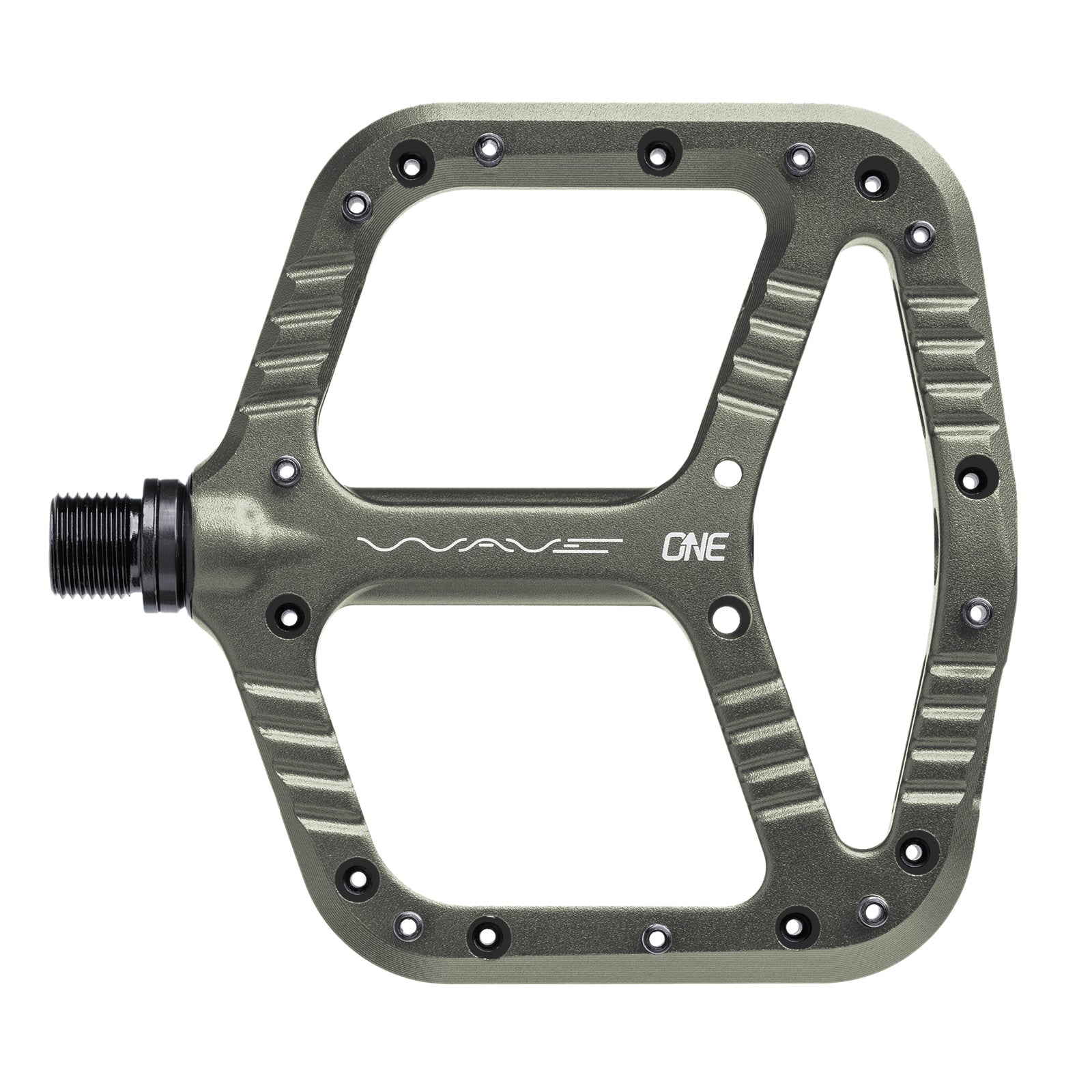

Most flat pedal profiles are either convex or concave. Wave is a patented hybrid convex/concave shape that promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated. With Wave, your foot is being held by the shape of the pedal - not just the pins. It’s time to ride the Wave.

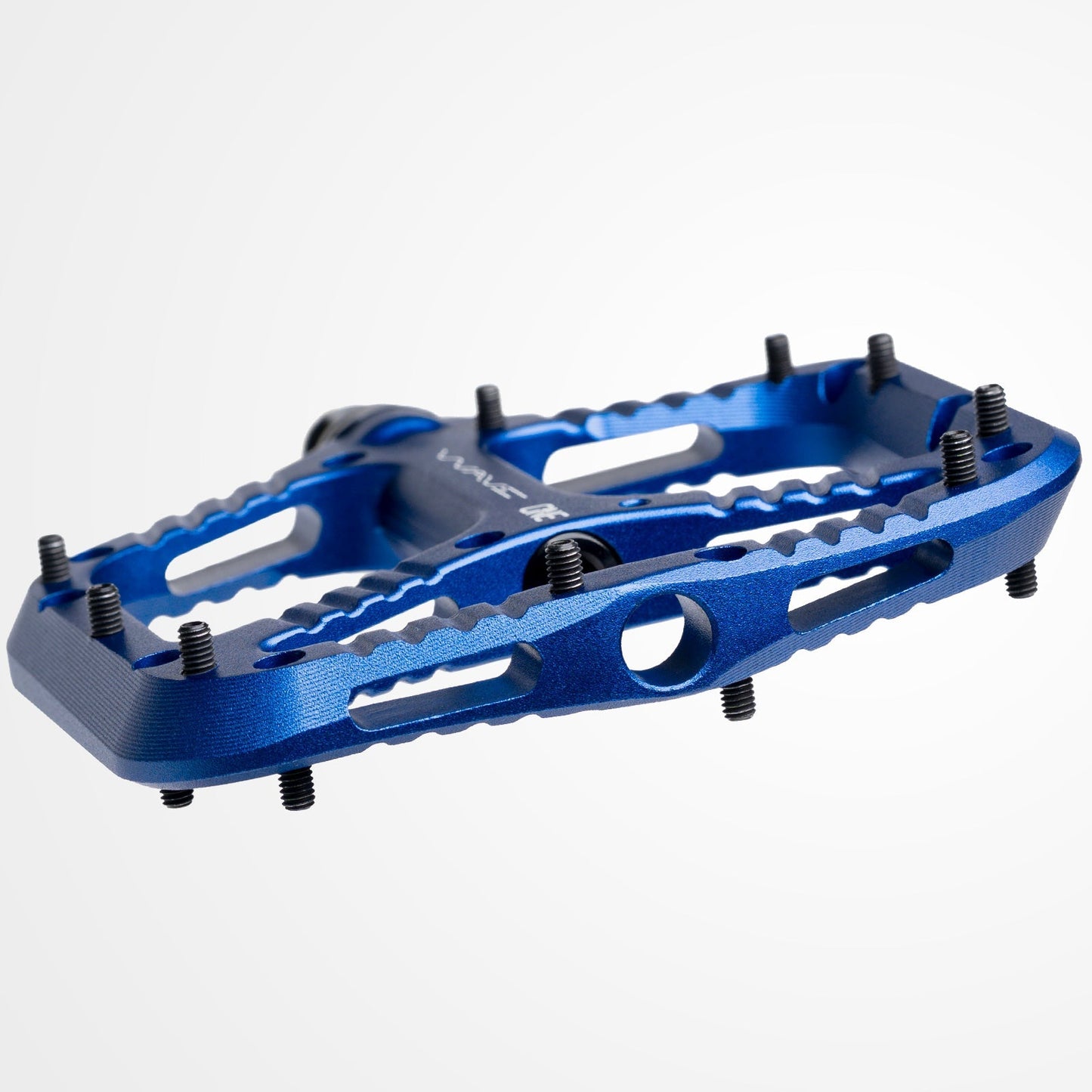

Convex + Concave = Wave

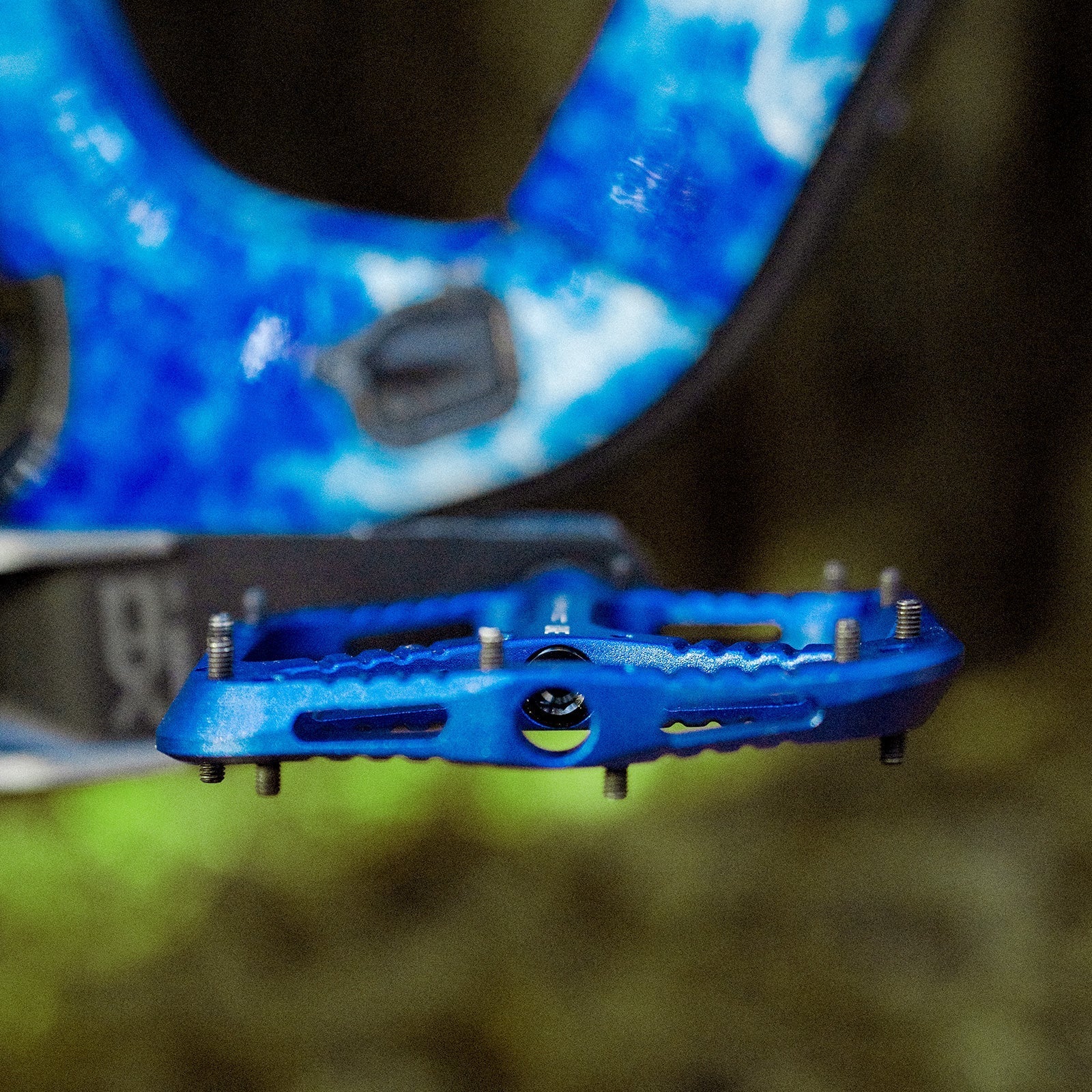

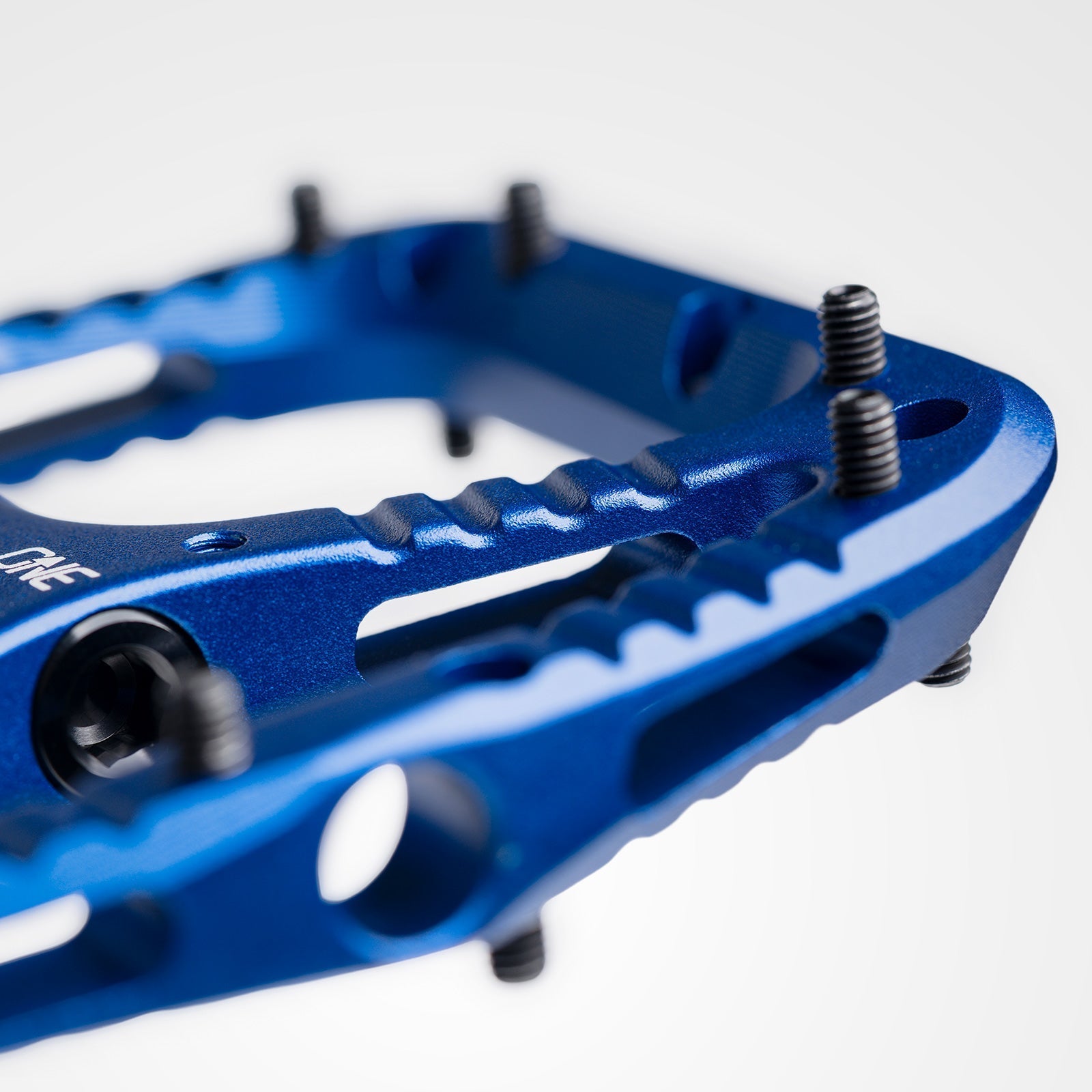

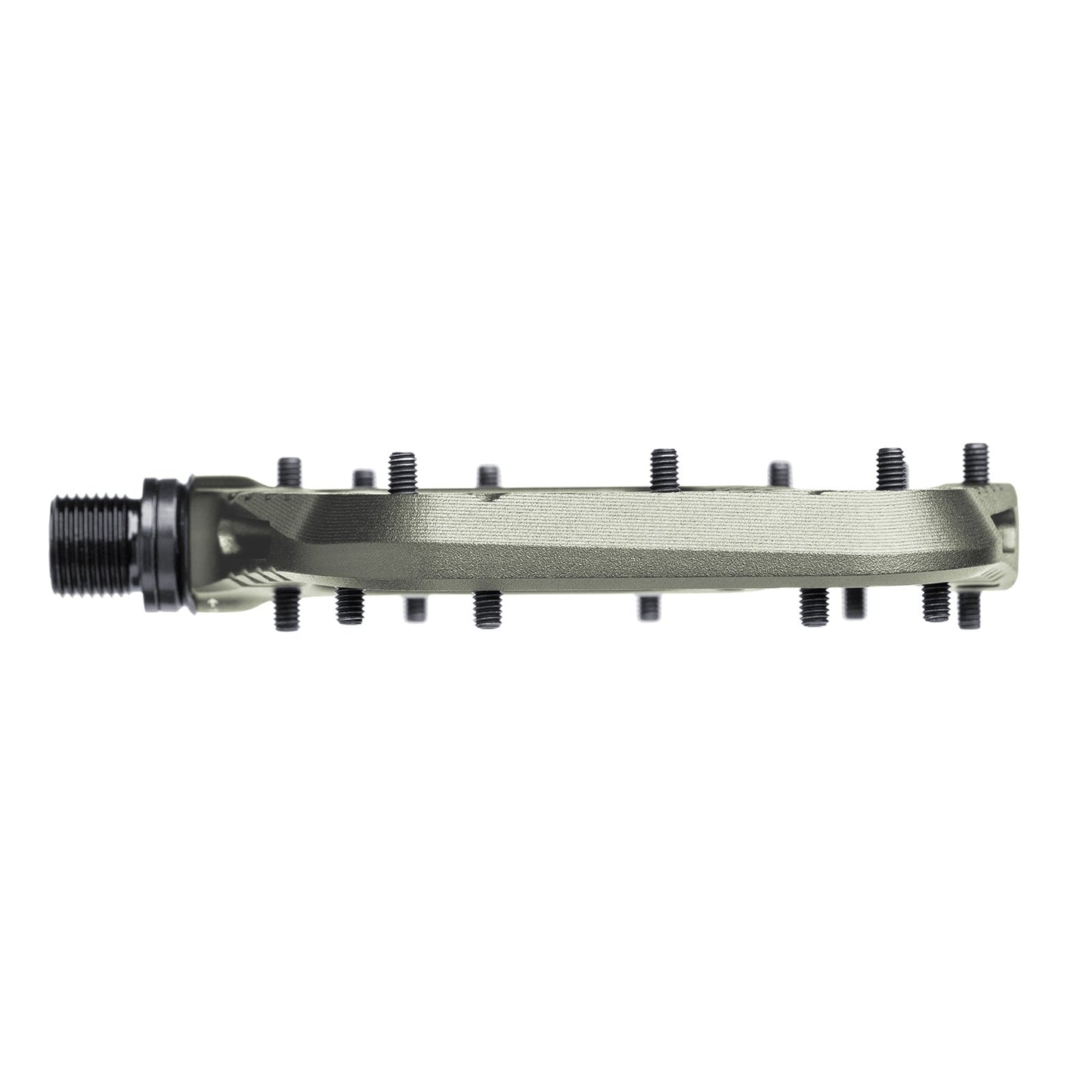

The concave front of the pedal hugs the ball of your foot. The sloped back half promotes an aggressive heels-down foot position for more power and control.

The Story of Wave

After thousands of hours on the bike, 8 design iterations and 4+ years of testing, we introduced a new take on flat pedal design.

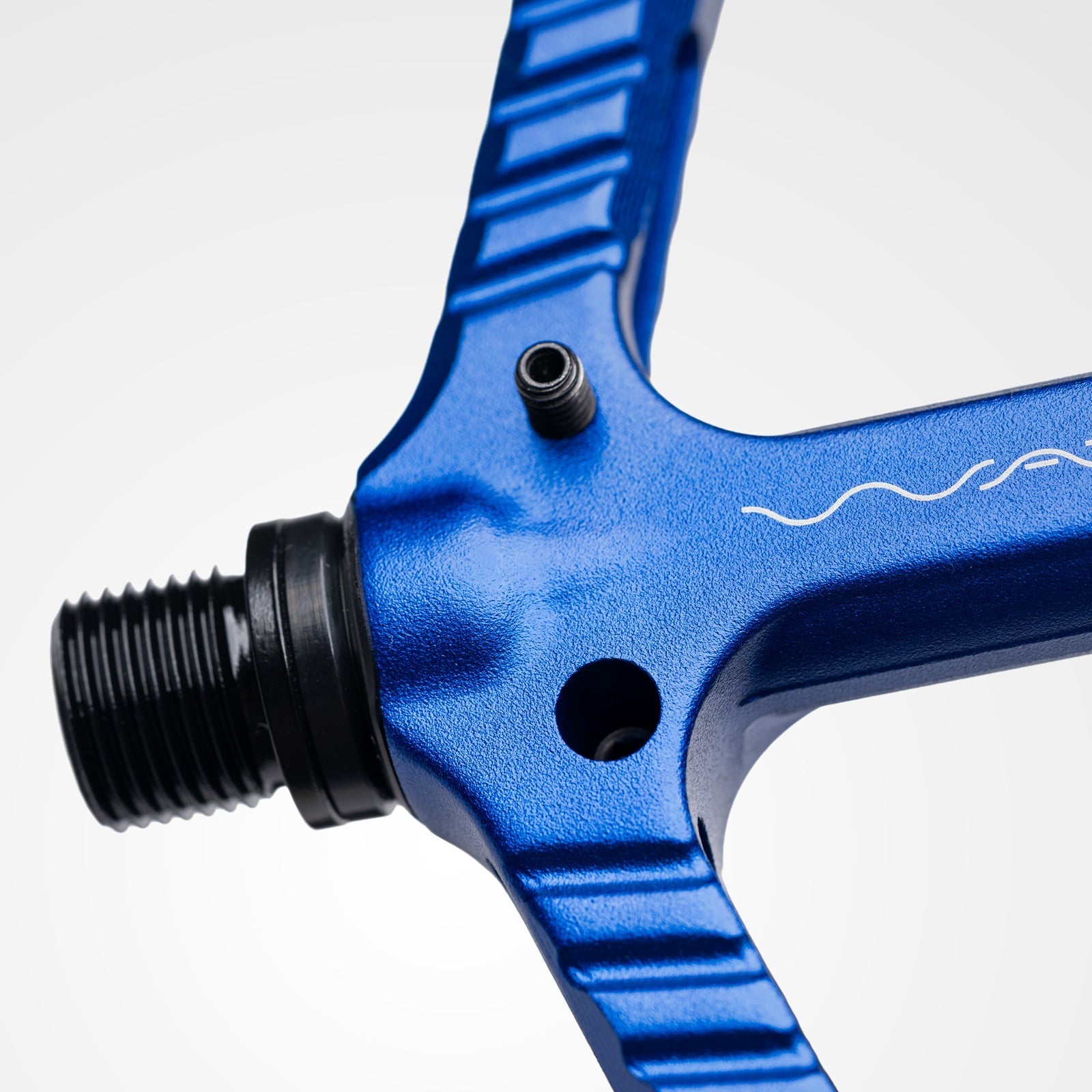

New Bearing and Axle System

Wave uses a sealed chromoly axle system with igus™ bushings and three outboard cartridge bearings. They're fully serviceable and come with our Pedal Bearing Nut Tool.

Product Specs

Weight: 355g (Pair)

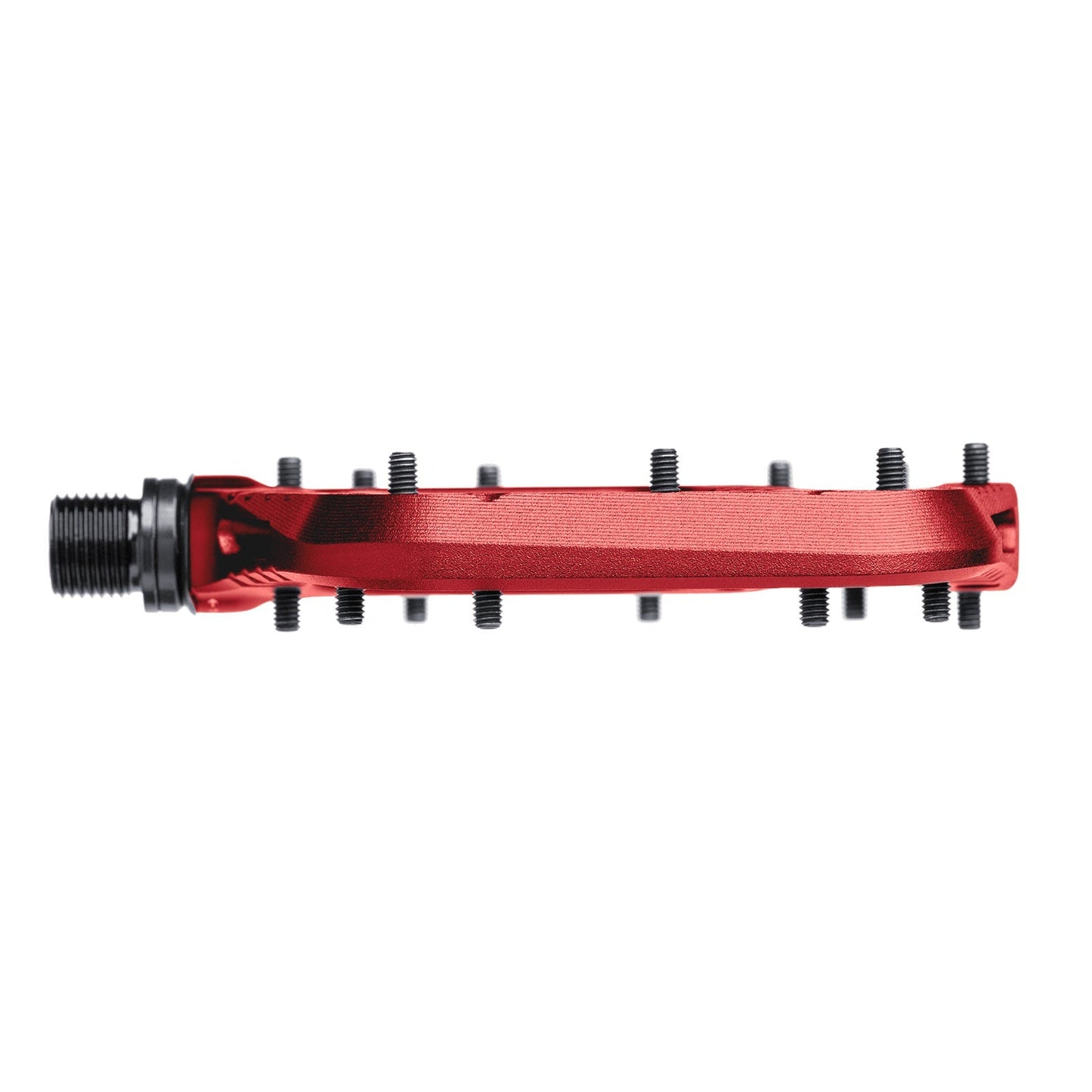

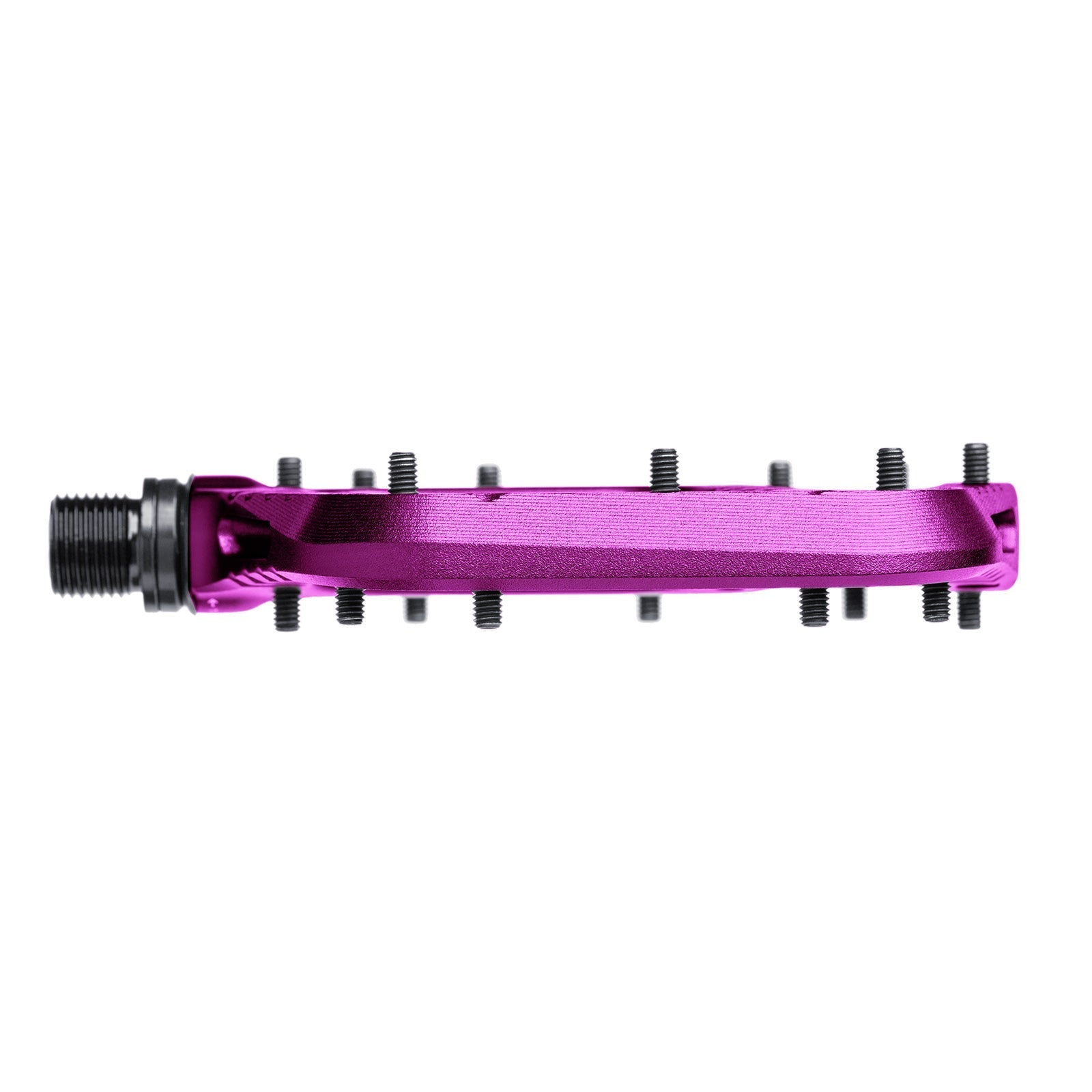

Thickness: Axle 14.2mm / Edges 11.5mm

Size: 107mm x 110mm (W x L)

Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings

Body: Forged and CNC’d 6061 Aluminum Body

Axle: Chromoly Steel with Black ED coating

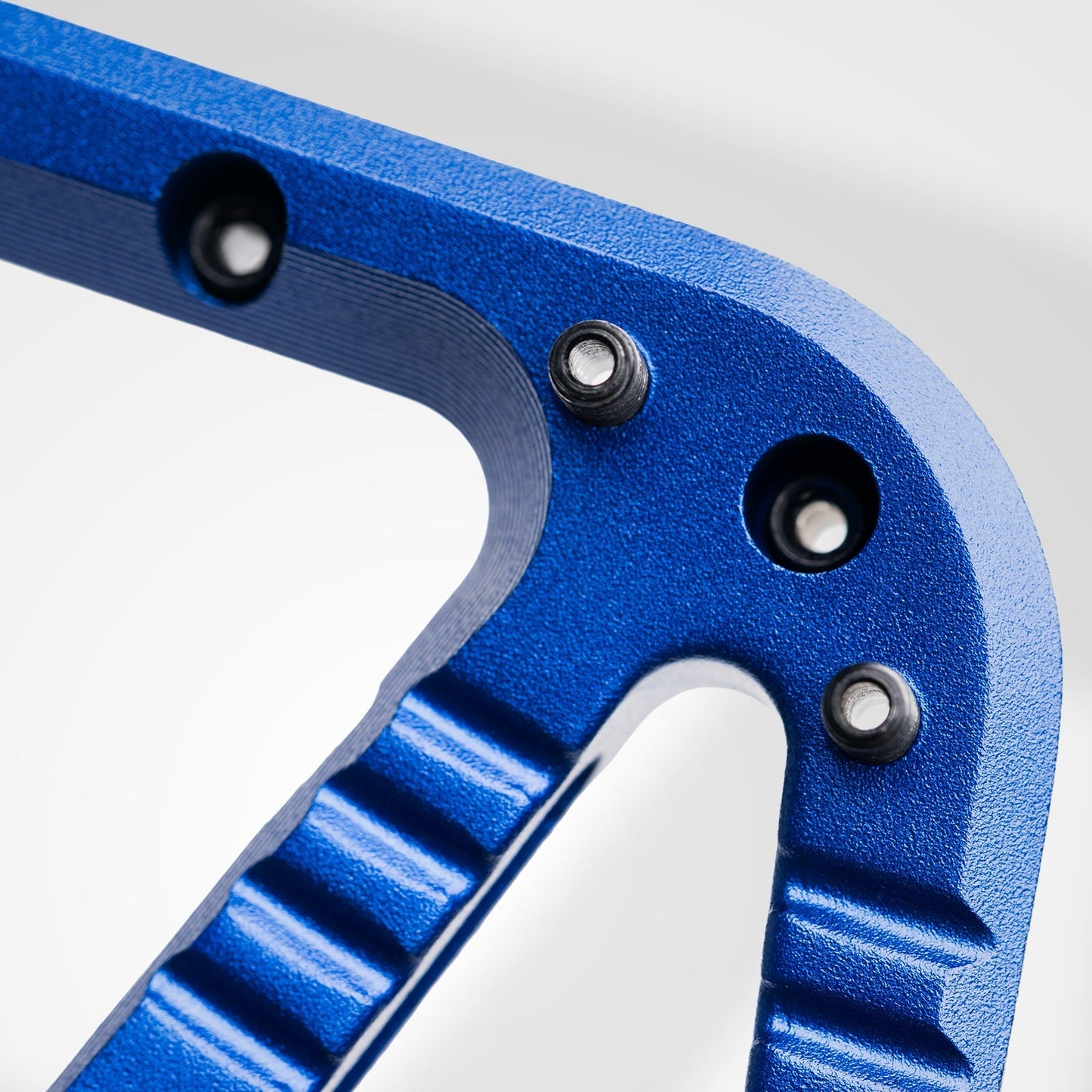

Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)

Colours: Black, Red, Dark Green, Dark Blue, Orange, Purple, Grey, Bronze

Things you Should Know

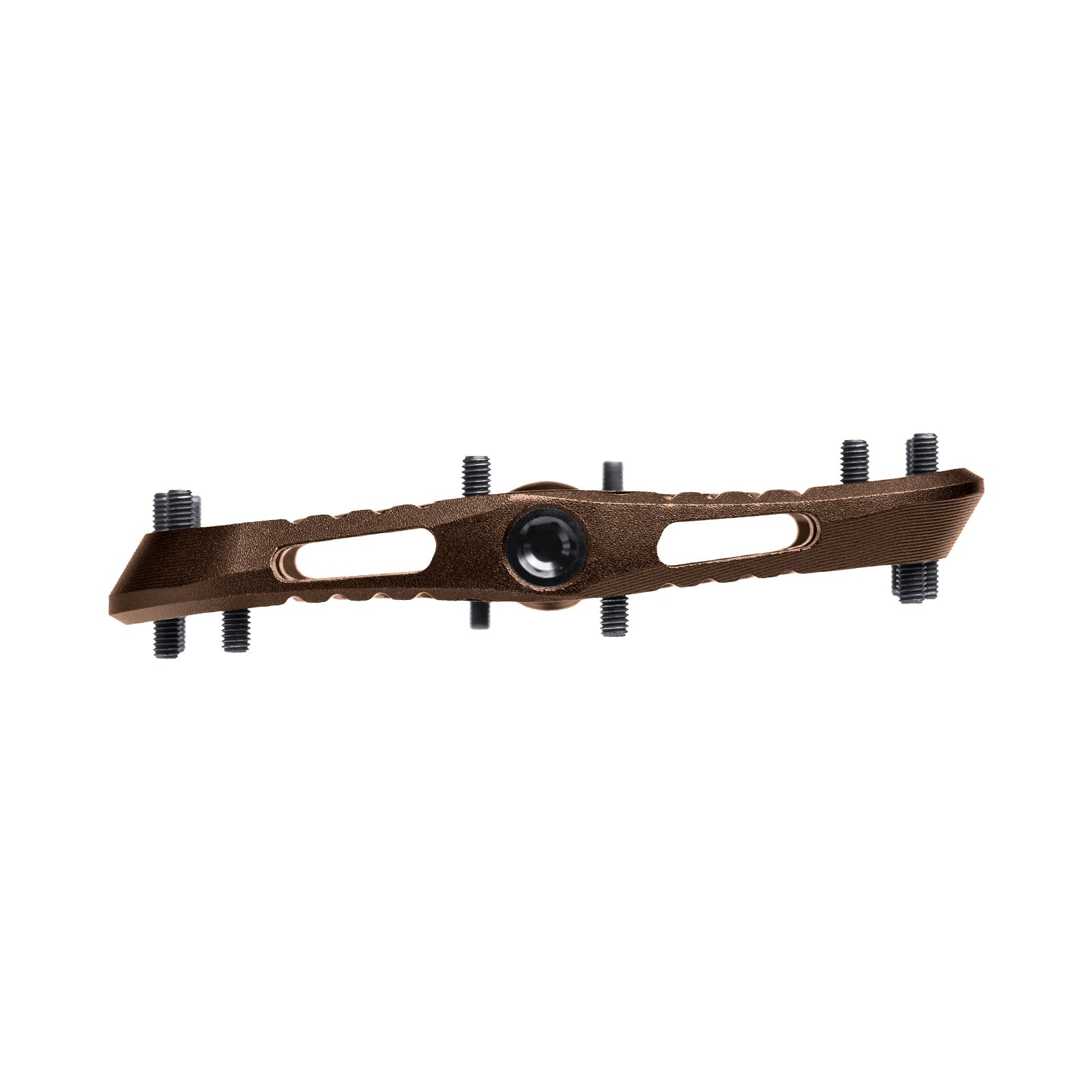

Convex + Concave = Wave: The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control.

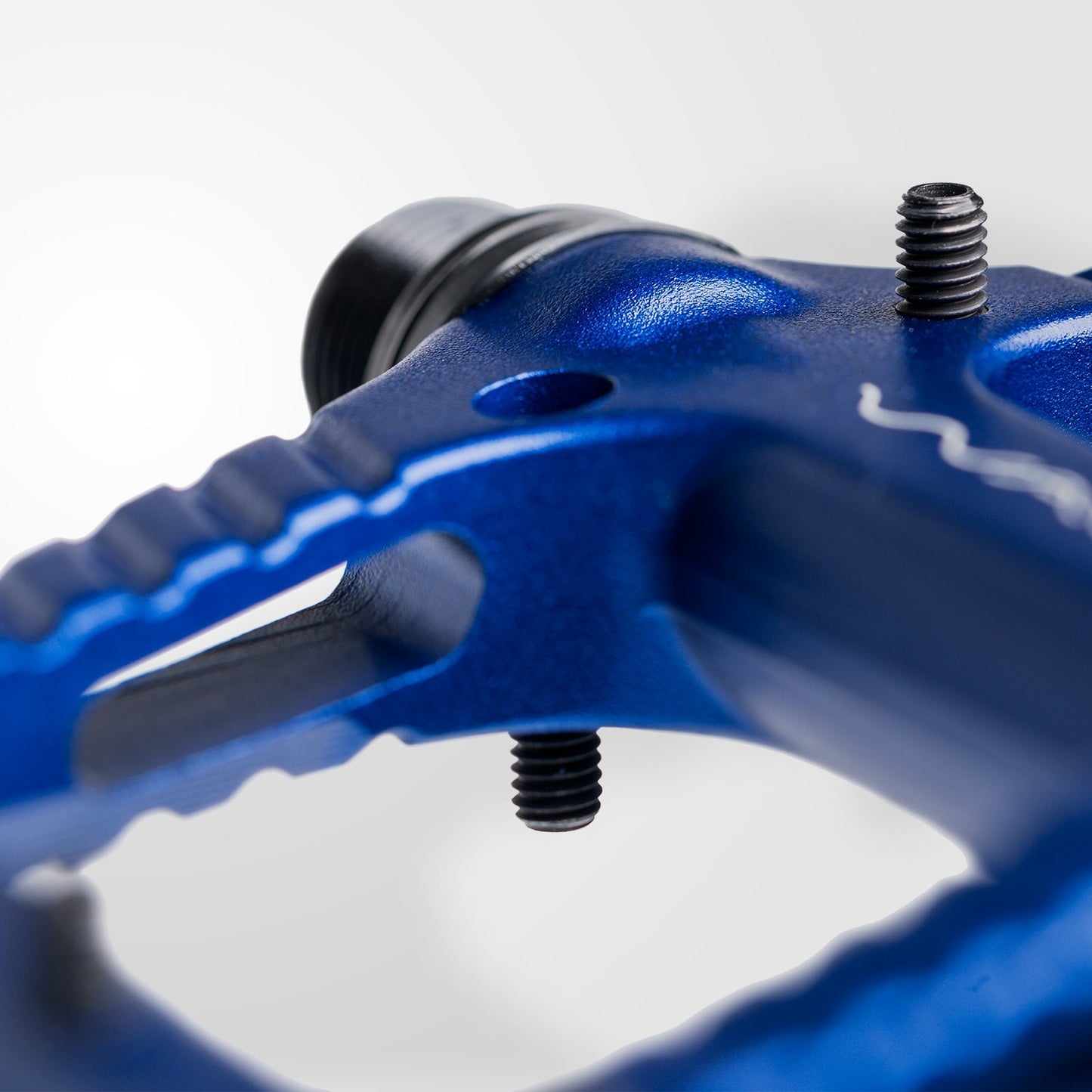

Angled Pins: Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins.
DH-Rated Axle: The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability — strong enough for all types of riding.
1 year manufacturer warranty.

What's in the Box

2x Wave Pedals (1x Left, 1x Right)

9x Installed M4 hollow threaded pins per side (36x pins total)

10x Spare/Uninstalled M4 hollow threaded pins

1x Pedal Bearing Nut Tool
